3D pellet process line is newly designed and produced with foreign advanced technology. It has reduced your cost on investment and production.Corn starch, wheart flour,potato flour and potato starch can be raw material to produce 3D Compound Pellet.
Technical Parameters
Model | DL70-ll 3D | DL85-ll 3D | DL70-ll 2D |
Input Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Installed Capacity | 142KW | 185KW | 116KW |
Power Consumption | 110KW | 125KW | 78KW |
Capacity | 200-300kg/h | 300-400kg/h | 100-150kg/h |
Length in space | 35000mm | 38000mm | 19000mm |

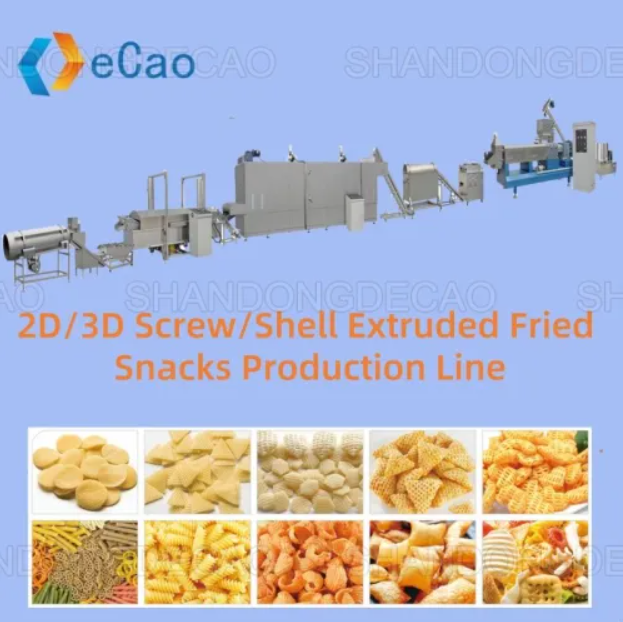

2D/3D Screw/Shell Extruded Fried Snacks production line production process：

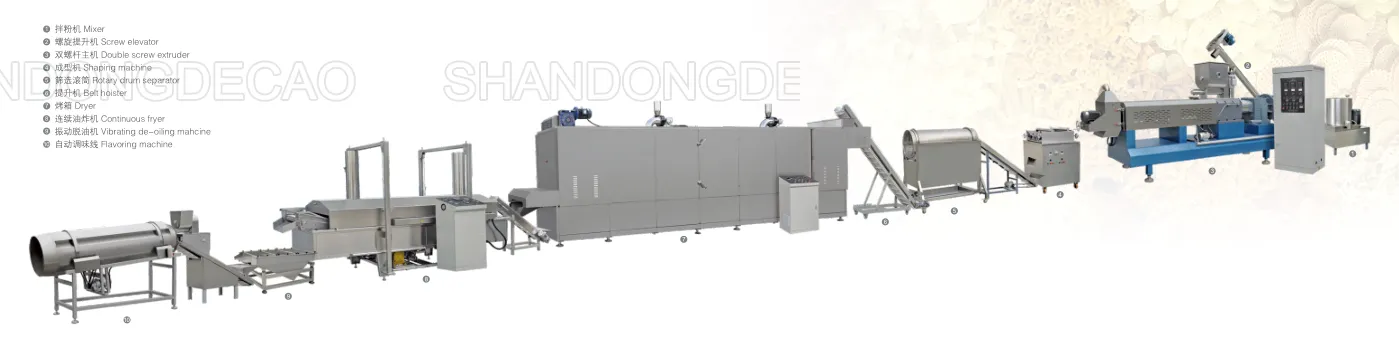

Mix-Screw elevator-Double screw extruder-Shaping machine-Rotary drum separator-Belt hoister- Drying-Continuous fryer-Vibrating de-oiling machine-Flavoring machine
Mix
| The mixing process is a key process in 2D/3D Screw/Shell Extruded Fried Snacks production. The basic process is to weigh the raw materials of different weights according to the formula, then pour them into the crusher and smash them, and then temporarily store all the materials in the storage bin. Then all the ingredients are ready, put them in the blender and mix them |
Screw elevator
| Allow the mixed material to be transported to the next stage |

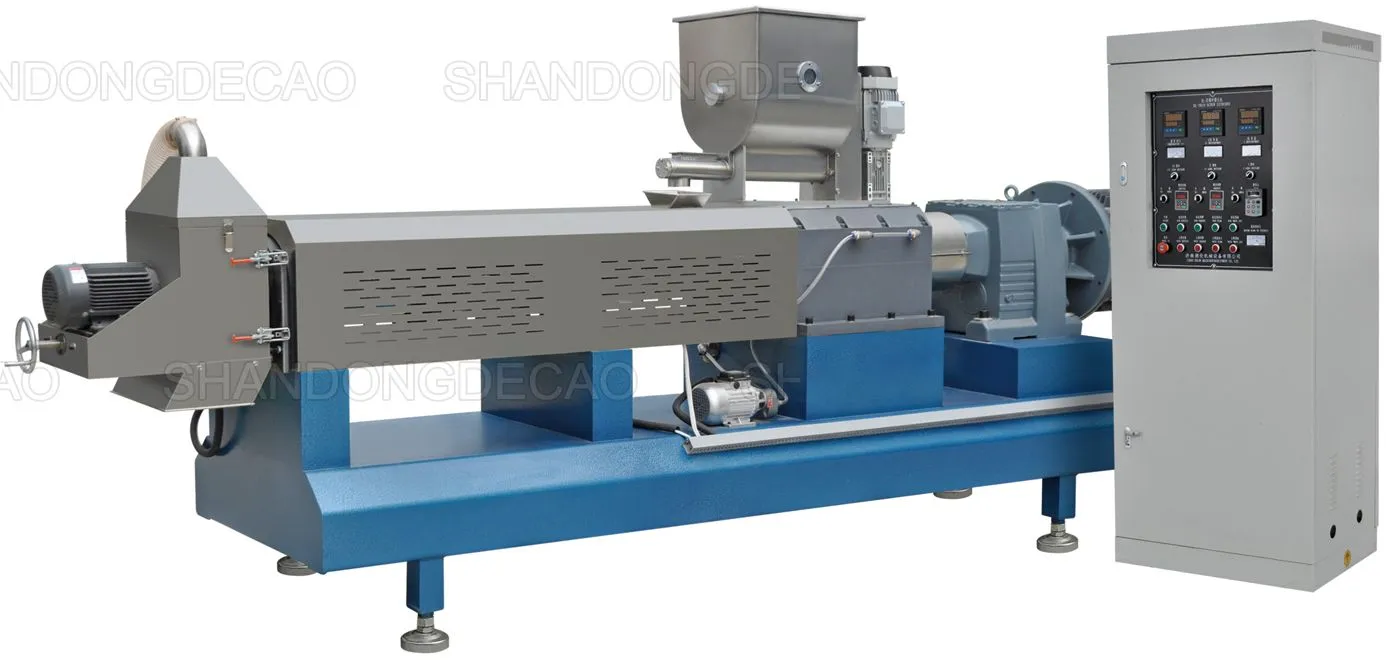

Double screw extruder
| Extrusion is a high temperature, short time heat treatment process. Through the extruder different mold (template) , can produce each kind of shape . |

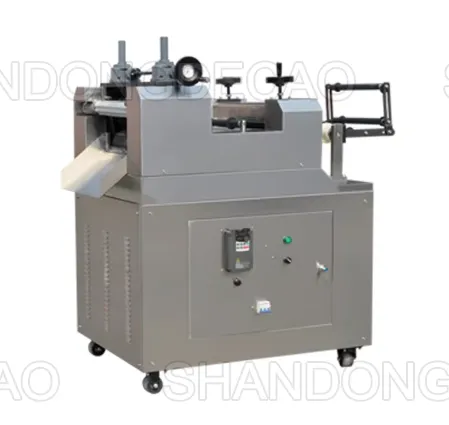

Shaping machine
| Pressed into the desired shape |

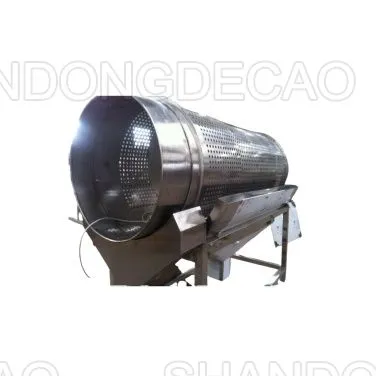

Rotary drum separator
| Fabric section for even downstream feeding |
Belt hoister
| Allow the mixed material to be transported to the next stage |
Drying
| Non-fried products are healthier with less oil |

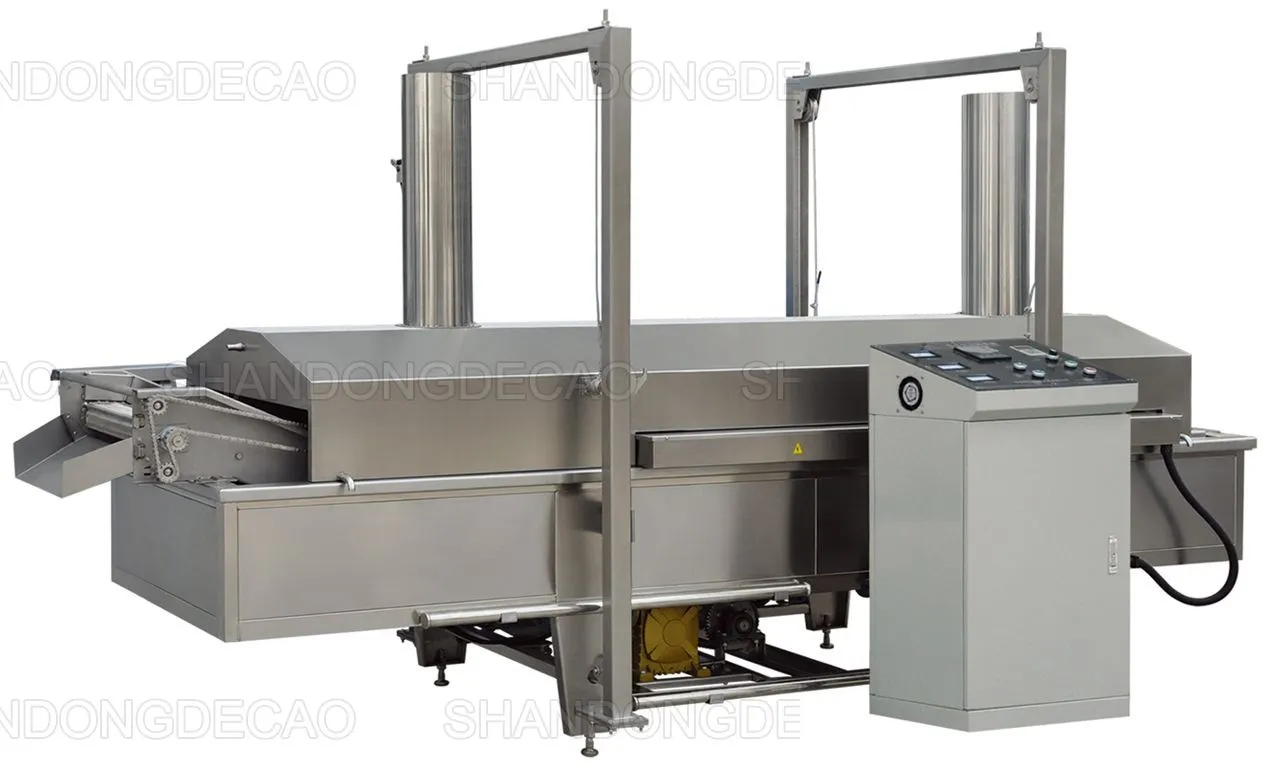

Continuous fryer
| Used to adjust the product taste |
Vibrating de-oiling machine
| Sieve out excess grease |

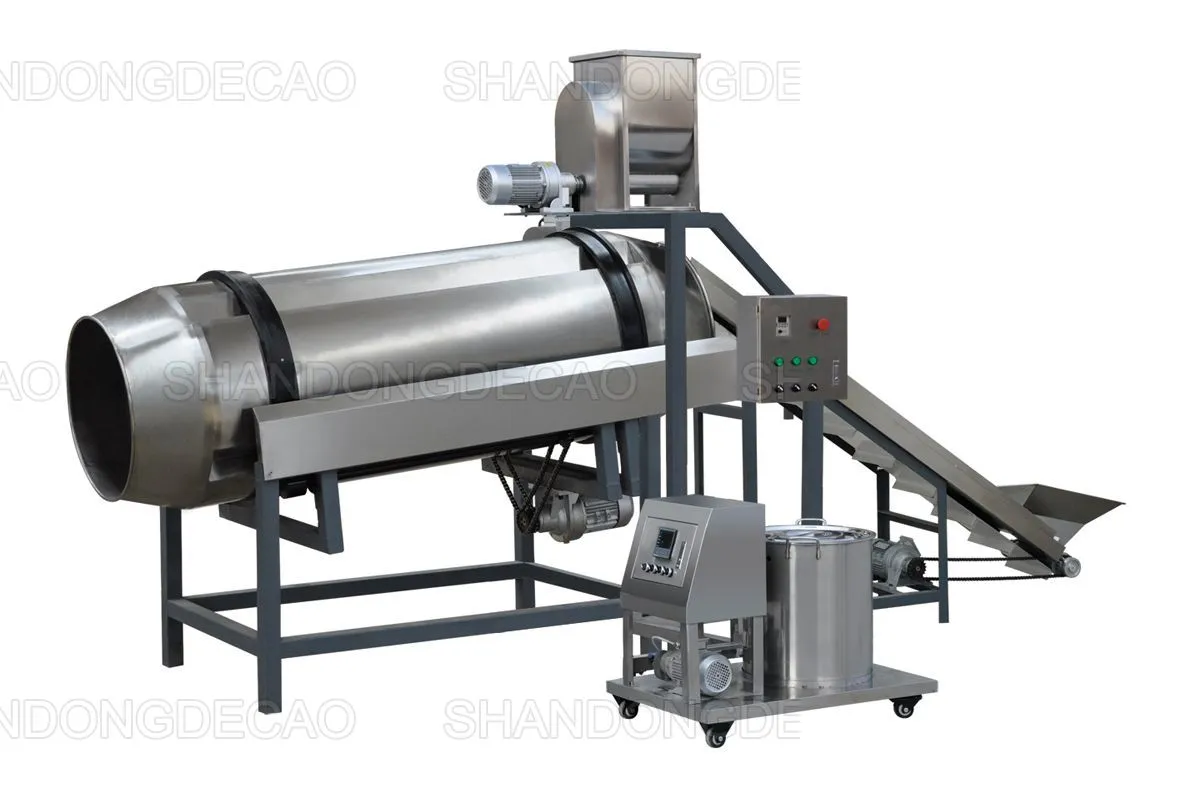

Flavoring machine
| Flavouring of products to increase taste |
This Double-screw fried wheat flour snack processing line uses double screw extruding technique to replace the traditional steam booling process with high efficiency and no pollution without a boiler. The raw material can be total whear flour, or mixing with corn powder, rice powder, or others. By changing the moulds, the products can be in different shapes. After fried and flavored, the final snacks will be crispy and tasty. This line has features of continuous working, stable performance, and reasonable design.
Q1: What kinds of products can be made?
A:2D/3D Screw/Shell Extruded Fried Snacks
Q2: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product.
Q3: What about the installation service?
A: We will send 1 engineer to the buyer's factory for a around 10-day period installation and training to the operators.
