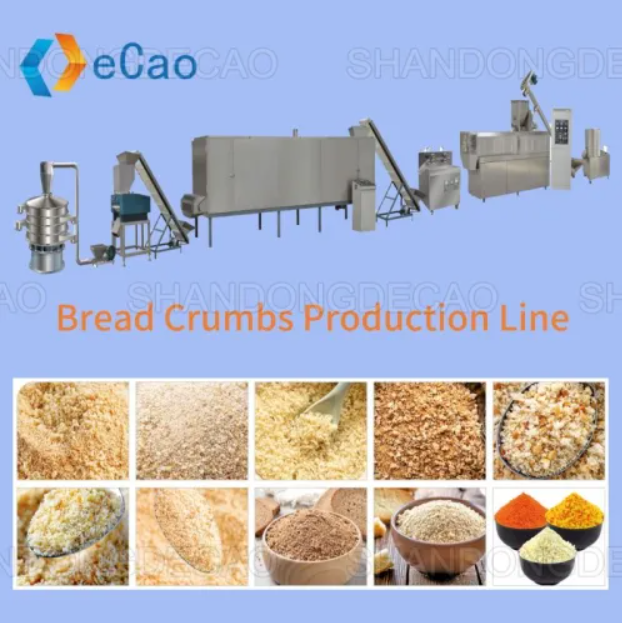

This line is automatically completed from mixing, extrusion, cutting to breaking and forming.
Our bread crumb production line can produce flake (snowflake), needle, fine grain and other shapes of bread bran, bread crumbs products by puffing process.
Technical Parameters
主机型号 Model | DL-70ll | DL-85-ll |
Input Voltage | 380V/50HZ | 380V/50HZ |
Installed Capacity | 95KW | 145KW |
Power Consumption | 66KW | 105KW |
Capacity | 200-300kg/h | 300-400kg/h |
Length in space | 30000mm | 32000mm |
Bread Crumbs production line production process：
Mix-Screw elevator-Double screw extruder-Multi-functional shaper-Belt hoister-Pulverizer-Air conveyor-Screener-Belt hoister-Drying
Mix
|
The mixing process is a key process in bread crumbs production. The basic process is to weigh the raw materials of different weights according to the formula, then pour them into the crusher and smash them, and then temporarily store all the materials in the storage bin. Then all the ingredients are ready, put them in the blender and mix them. |
Screw elevator
|
Allow the mixed material to be transported to the next stage |
Double screw extruder
|
Extrusion is a high temperature, short time heat treatment process. Through the extruder different mold (template) , can produce each kind of shape . |
Multi-functional shaper
|
This equipment is for better stretch cutting |
Belt hoister
|
Allow the mixed material to be transported to the next stage |
Pulverizer
|
Cut and crush into desired breadcrumb shape |
Air conveyor
|
Transport of extruded food to the next stage |
Screener
|
Grades of breadcrumb coarseness |
Belt hoister
|
Allow the mixed material to be transported to the next stage |
Drying
|
High temperature baking to dry and mould the surface |
Our products can be customized, tell us the specifications you need and our sales staff will provide you with the equipment and machine specifications that suit you best.
Q1: What kinds of products can be made?
A: Our products can be customized, our bread crumb production line can produce flake (snowflake), needle, fine grain and other shapes of bread bran, bread crumbs products by puffing process.
Q2: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product.
Q3: What about the installation service?
A: We will send 1 engineer to the buyer's factory for a around 10-day period installation and training to the operators.
